Versa 5f
(Floorstanding Speaker)
Picture not yet available

  • Floorstanding Version of the Versa 5
  • available with or with out built in subwoofer

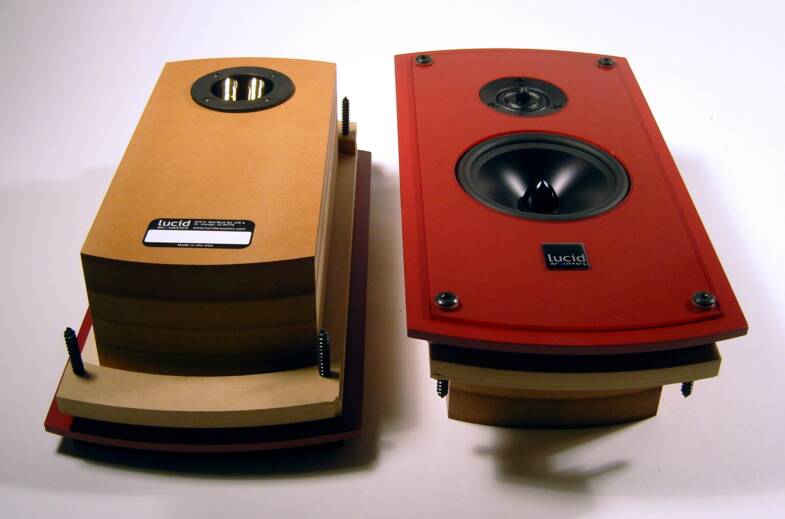

Versa 5i, and 5ic
(In-Wall, and In-Ceiling Speaker)
Pictured in walnut with high gloss black front plate, and cherry

  • Sandwich braces for rock solid In-Wall mounting

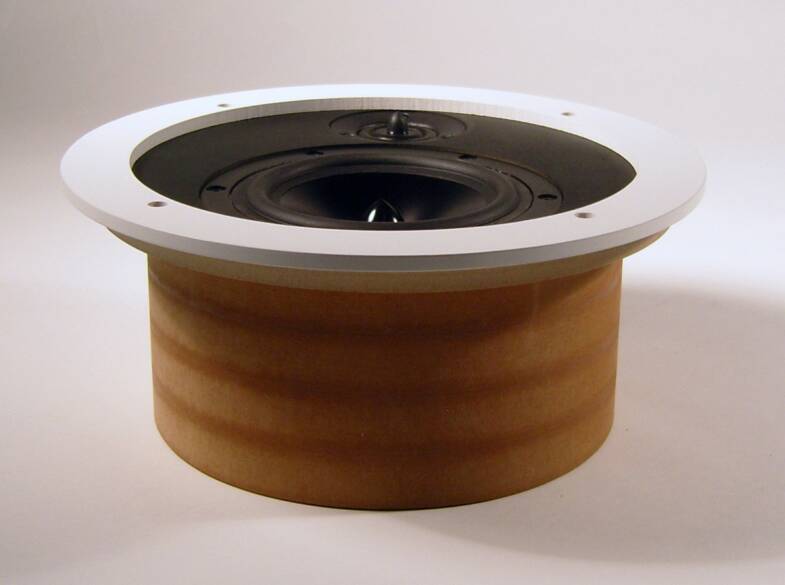

  • In-Ceiling speaker available with either an inset grill that shows the speaker baffle (shown), or a grill that completely covers the baffle and is colored to match the ceiling.
  • Both models come with sealed back box, this makes the speakers sound more consistent.
Versa Series

The Versa line is based around new ultra low distortion drivers.   It has a classy look and cutting edge technology. It can be finished in almost any finish desired, and is changeable.   This is the most versatile speaker Lucid Acoustics has ever produced.   We hope you enjoy the experience as much as we do.
Versa

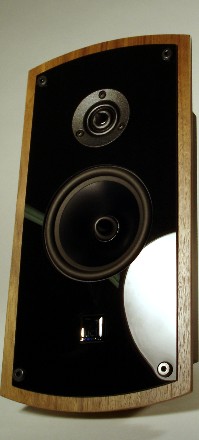

Versa 5i in walnut

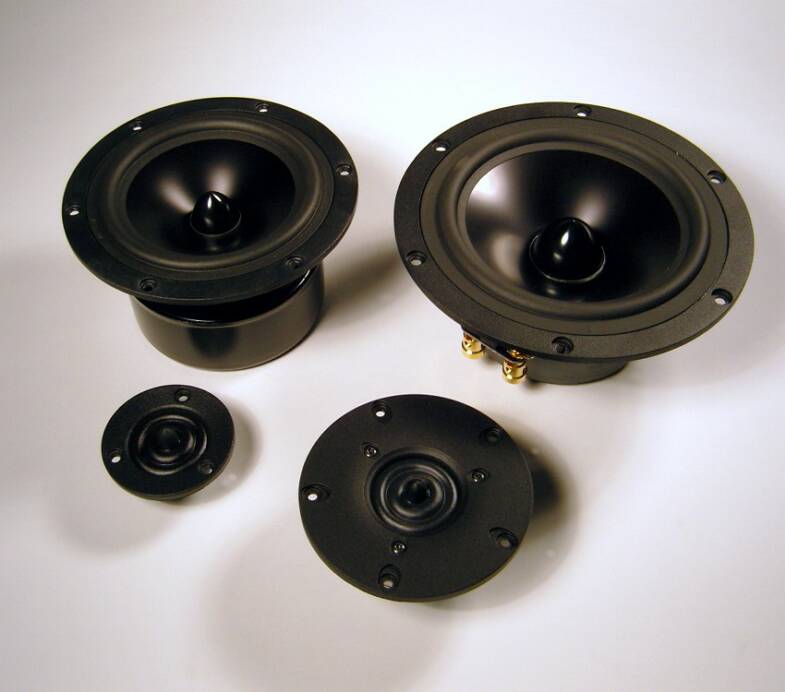

Versa 5 Drivers on the left, Versa 7 drivers on the right, click on picture to enlarge
Versa Series Features


  • Aluminum cone woofer with a solid aluminum phase plug and cast aluminum basket.  Two shorted paths dramatically reduce both IM and harmonic distortion.  "T" shaped pole piece for symetrical magnetic flux
  • Hi-end chambered ring radiator tweeter with extension to 40Khz.   Low distortion and low compression design.   Engineered in Denmark
  • Fully enclosed and finished back box for predictable sound

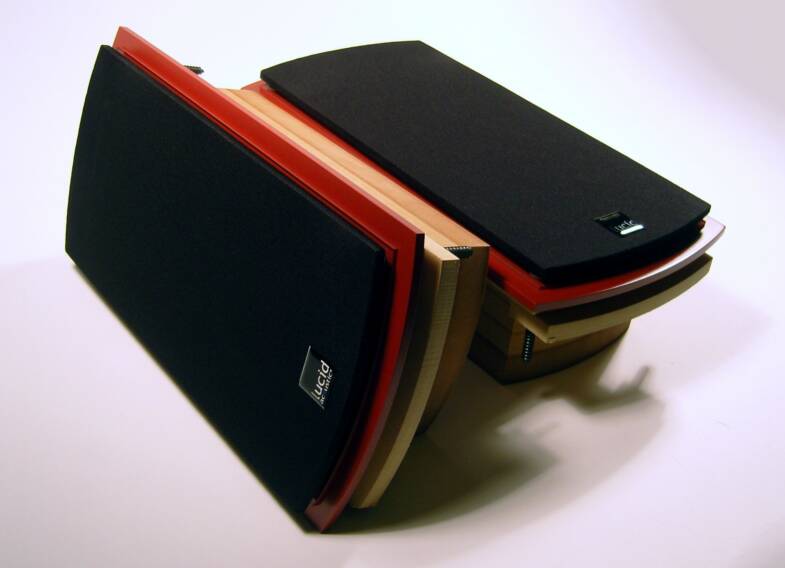

  • Interchangeable front panel so you can change the look of your system when you want to
  • Polypropylene Capacitor in the audio signal path.
  • Danish perfect lay air core inductors in signal path
  • Magnetic grill in black, (grill can be dyed to match any color for small fee)
  • High gloss front plate comes standard in black or same color as front face.
  • Comes Standard in your choice of 50 standard lacquer colors.
  • Latex paint custom color match at no additional charge. 5 piece minimum on custom matched finishes. (includes matched grill)
  • Available in any Automotive high gloss finish for additional charge.
  • Real wood veneers upgrade available.
  • Piano lacquer finish on wood veneer available.
  • Custom stain or glaze available to perfectly match speakers to existing decor.

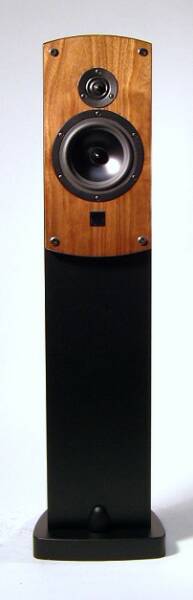

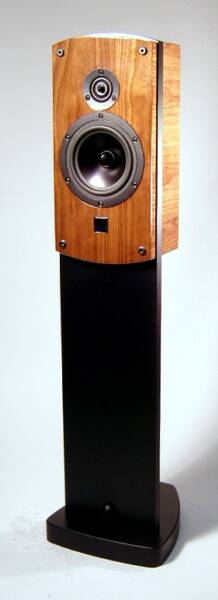

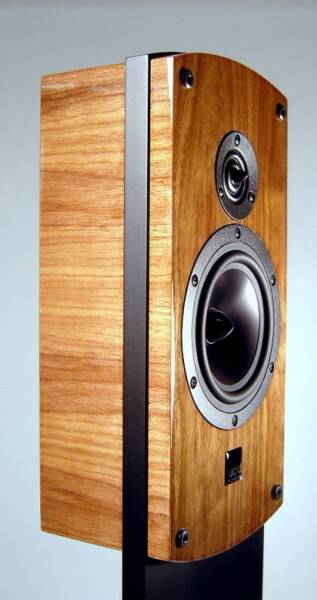

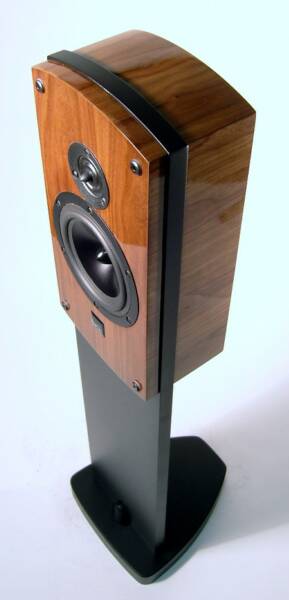

Versa 5F
Shown in Piano Lacquered Walnut with stand

  • This model comes with a floor stand, and spiked plinth.

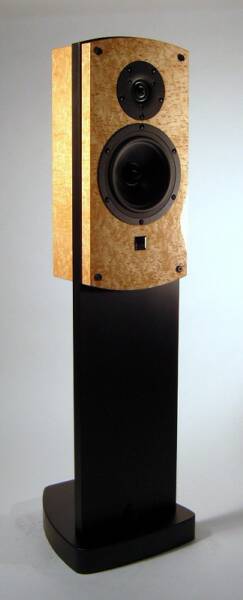

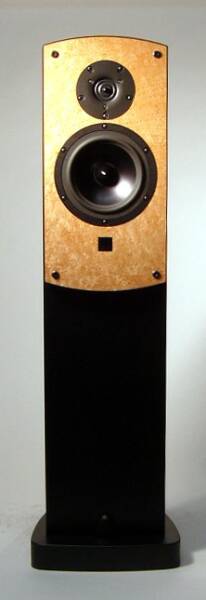

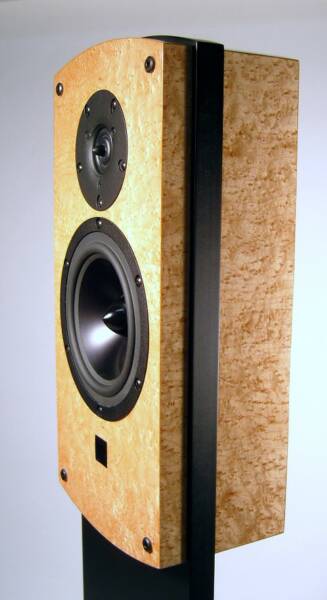

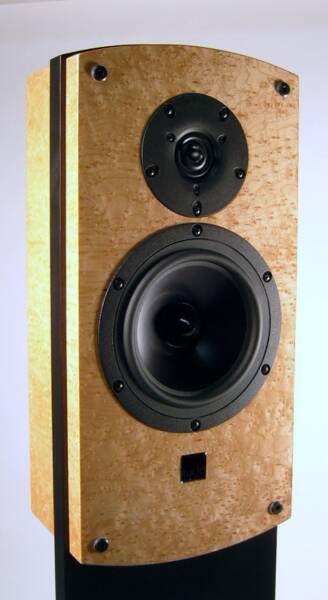

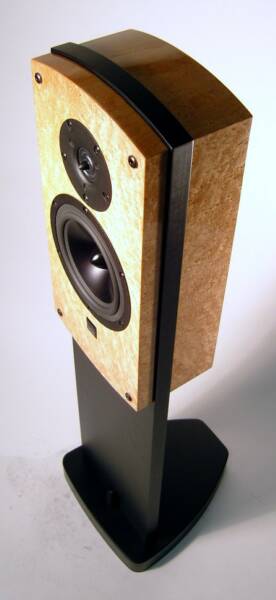

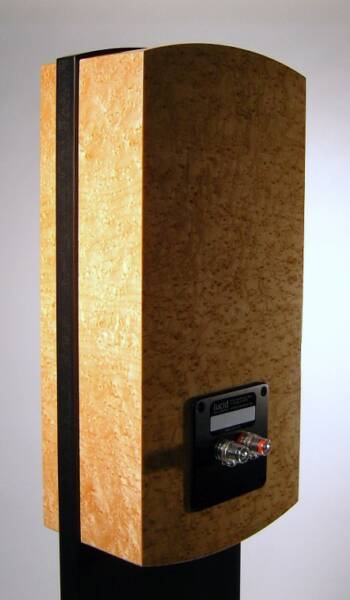

Versa 7F
Shown in Piano Lacquered Birds Eye Maple with optional stand

  • This is the 7" model of the Versa 5 floor standing model.

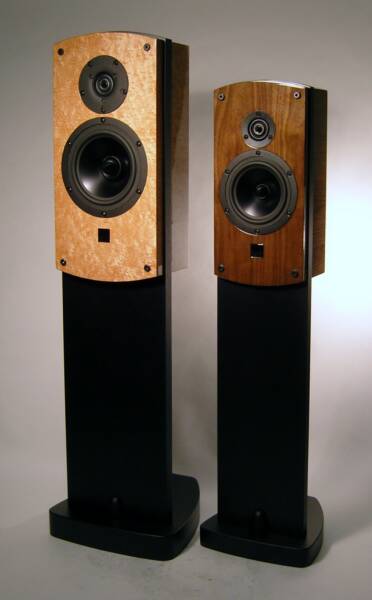

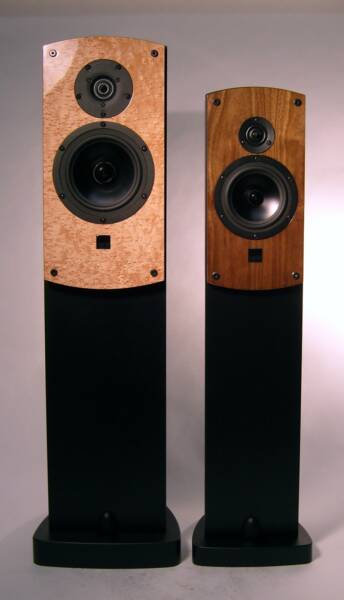

Versa 7F, and 5F
Shown in Piano Lacquered Birds Eye Maple, and Walnut veneer.

  • Picture is for comparison purposes.   The 7F is 39" tall when used with spikes.

Specifications
Versa 7 (universal)

W: Wall Mount version with thin wall mount
F: Floor Standing version with stand
C: Center Channel version with plinth
B: Book Shelf version with plinth

  • Power Handling: 50-200 Watts
  • Frequency Response: 70hz - 40,000hz
  • Impedance: 4 Ohms
  • Dimensions as On-Wall (W):
18" tall, 6.5" deep, 8.75" wide
  • Dimensions with Floor Standing Mount (F):
39" tall, 12" deep, 11" wide
  • Dimensions with Center Channel Mount (C):
10" tall, 7.5" deep, 18" wide
  • Dimensions with Book Shelf Mount (B):
19.25" tall, 7.5" deep, 10' wide
  • Driver sizes: 1" tweeter, 7" Mid-Woofer
  • Shielded: NO
  • Weight: 18lbs

Versa 7i (in-wall)
  • Power Handling: 50-200 Watts
  • Frequency Response: 70hz - 40,000hz
  • Impedance: 4 Ohms
  • Dimensions: 18" tall, 4.5" deep, 9" wide
  • Driver sizes: 1" tweeter, 7" Mid-Woofer
  • Shielded: NO
  • Weight: 14lbs
Versa 5 (universal)

W: Wall Mount version with thin wall mount
F: Floor Standing version with stand
C: Center Channel version with plinth
B: Book Shelf version with plinth

  • Power Handling: 25-200 Watts
  • Frequency Response: 80hz - 40,000hz
  • Impedance: 6 Ohms
  • Dimensions as On-Wall (W):
15" tall, 4.5" deep, 7.25" wide
  • Dimensions with Floor Standing Mount (F):
36" tall, 10" deep, 9" wide
  • Dimensions with Center Channel Mount (C):
8.5" tall, 6.625" deep, 15" wide
  • Dimensions with Book Shelf Mount (B):
16.5" tall, 6.625" deep, 8' wide
  • Driver sizes: 1" tweeter, 5" Mid-Woofer
  • Shielded: YES
  • Weight: 10lbs

Versa 5i (in-wall)
  • Power Handling: 25-200 Watts
  • Frequency Response: 80hz - 40,000hz
  • Impedance: 6 Ohms
  • Dimensions: 15" tall, 4.5" deep, 7.5" wide
  • Driver sizes: 1" tweeter, 5" Mid-Woofer
  • Shielded: YES
  • Weight: 9lbs

Versa 5ic (in-ceiling)
  • Power Handling: 25-200 Watts
  • Frequency Response: 80hz - 40,000hz
  • Impedance: 6 Ohms
  • Dimensions: 10" tall, 4.75" deep, 10" wide
  • Driver sizes: 1" tweeter, 5" Mid-Woofer
  • Shielded: YES
  • Weight: 9lbs

Versa 5b Classic (book shelf)
  • Power Handling: 25-200 Watts
  • Frequency Response: 60hz - 40,000hz
  • Impedance: 6 Ohms
  • Dimensions: 9" tall, 8" deep, 6.75" wide
  • Driver sizes: 1" tweeter, 5" Mid-Woofer
  • Shielded: YES
  • Weight: 10lbs

All systems and designs are registered and protected by copyright, any copying or reproduction of Lucid Acoustics designs without written permission is illegal and will be prosecuted to the full extent of the law.   Lucid Acoustics reserves the right to change and improve its products and specifications without notification.
Versa 5 and 7 "universal" Speaker Family

  • The "universal" series can be used in many different applications depending on which mount is chosen.
  • The "universal" series is designed to be used in conjunction with a subwoofer.
  • Speaker enclosure is identical on each model,
  • The W comes standard with a 1/2" thin wall mount.
  • The F is a floor standing model that comes with stand and spiked plinth.
  • The C is a horizontally placed center channel version with spiked plinth.
  • The B is a vertical book shelf model with spiked plinth.
  • Proto and Versa series share the exact same stands and plinths, If you are looking for a version that is not pictured please visit the proto page for exaple pictures.

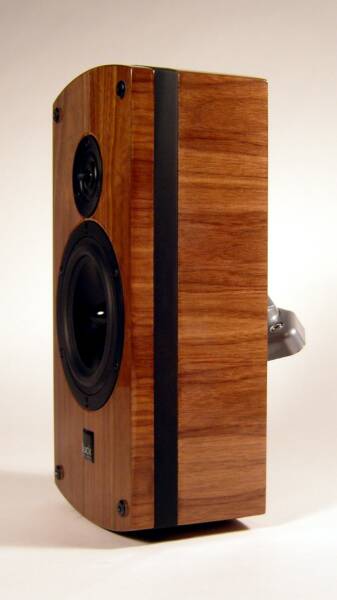

Versa 7w, and 5w

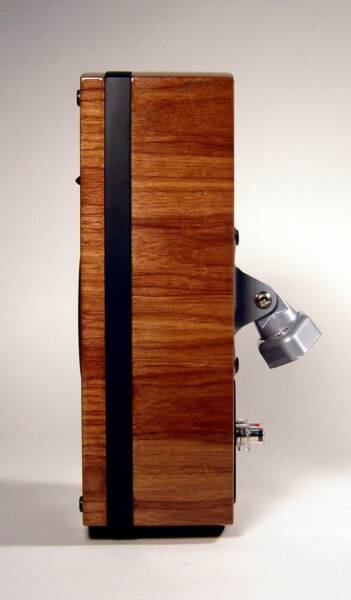

Wall mount version of the Versa 7 and 5, Versa 5w shown in Piano Walnut

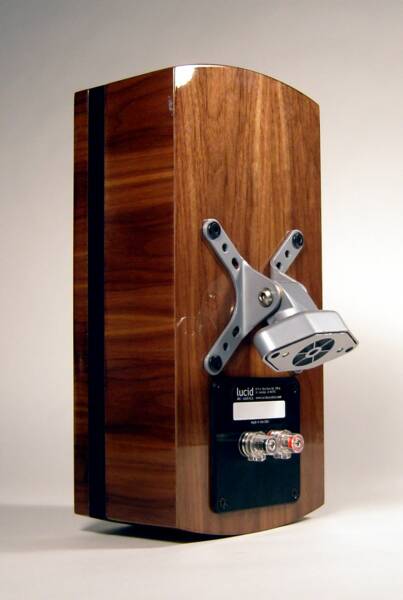

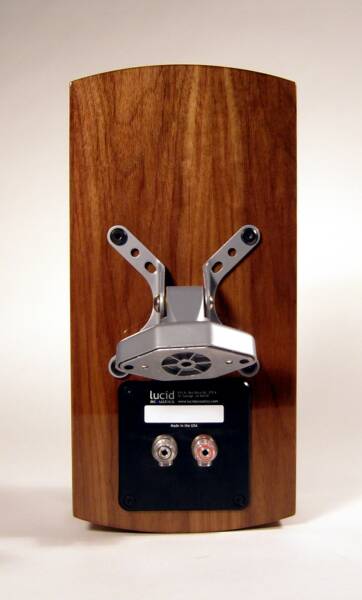

  • This model has a 3" tilt-able wall bracket for easy adjustment.

Versa 7b, and 5b
Bookshelf version of Versa 7 and 5

  • This model comes with a stand to adapt it to bookshelf situations.

Versa 7C, and 5C
Center channel version of Versa 7 and 5

  • This model comes with a stand to adapt it for center channel applications.
  • This model can be connected together in sets of three to make On-Wall LCR speaker bar, for use with flat panel televisions.
