Custom Series

Lucid Acoustic's, Custom Series represents state of the art in loudspeaker design and performance.  We decided that giving our customers finish options was not enough.  In a quest to tailor our speakers to a customers taste and acoustic environment we developed the new Custom Series.   It is unique in that you can choose which drivers you want.  This means you will have a speaker that is unique to your needs and desires.
Custom Series

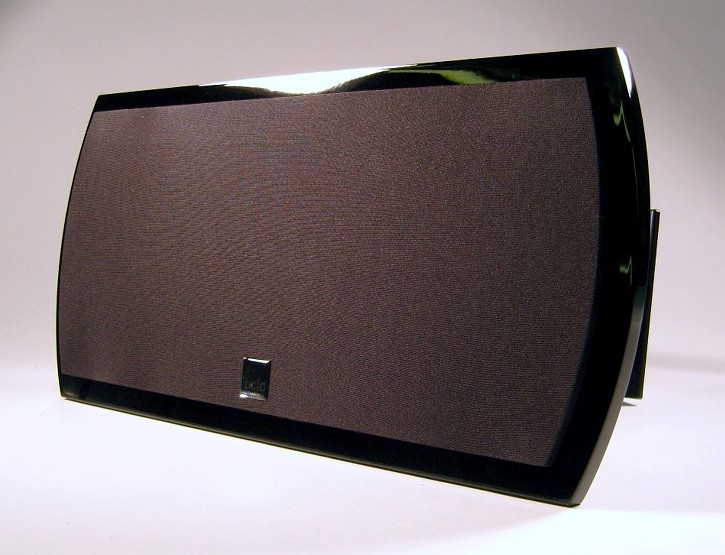

Custom 7w, 7i

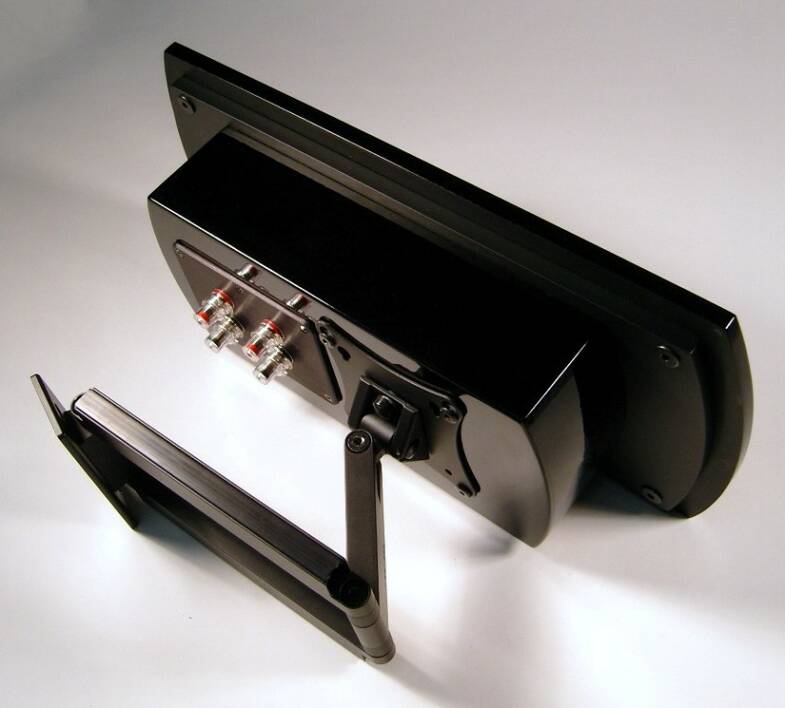

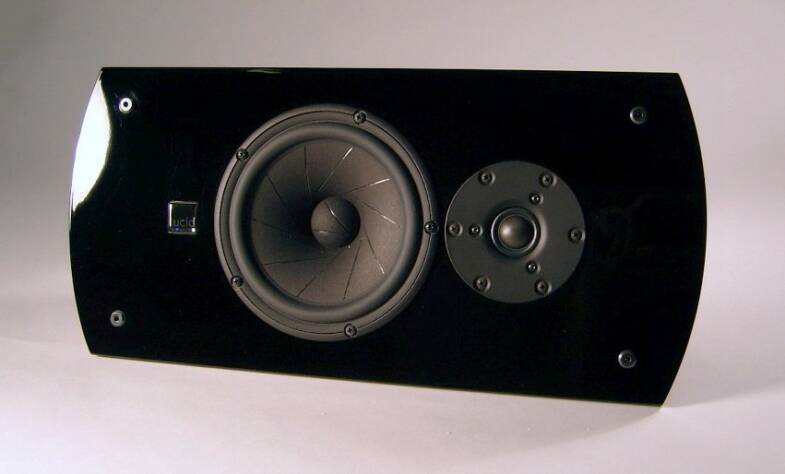

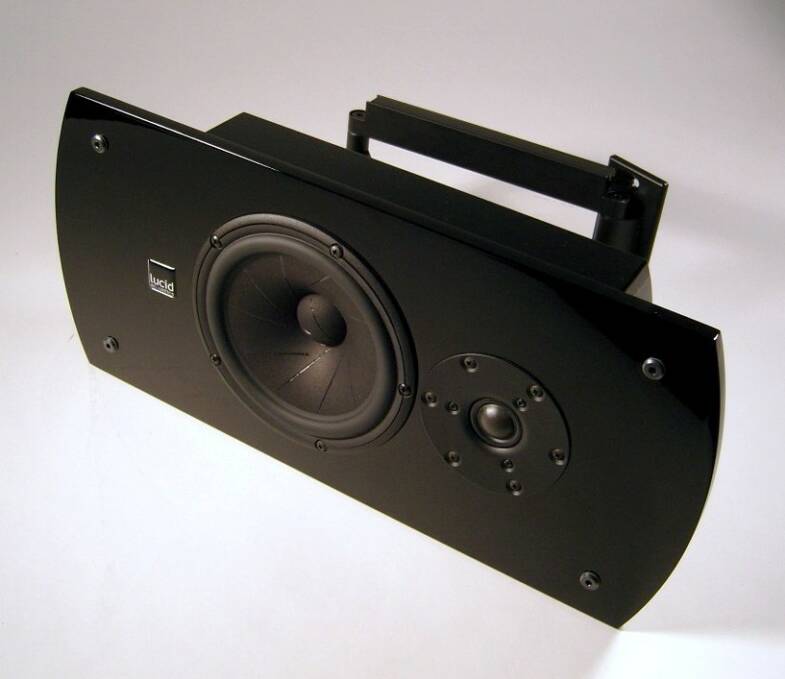

Pictured in Black Automotive finish with Danish Driver Set, and articulating wall mount

Custom 7w is a thin bodied out of wall speaker.   Like the Versa and Proto w series it comes with VESA hardware for wall mounting, and can be adapted for bookshelf or center channel applications using optional legs and feet.

Custom 7i is identical to the 7w except it comes with In-Wall mounting hardware and a slim Speaker input cup so it can fit within a standard stud wall.

Driver Option Details

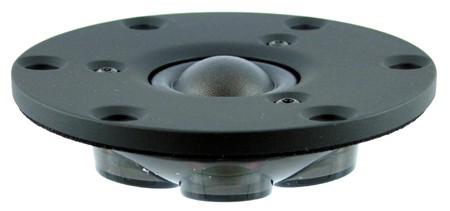

Danish Set: Scan Speak Revelator 7" woofer, and newly designed Scan Speak Air-Circ tweeter

  • Both drivers are engineered and built in Denmark.
  • New Air-circ tweeter is low distortion and has unmatched off axis response.
  • Scan Speak Revelator woofer is one of the most recognizeable Ultra High end drivers made.
  • This set has a rich delicate sound that is intoxicating.

Norwegian Set: SEAS Excel 7" magnesium alloy woofer, and matching SEAS Millennium tweeter

  • Both drivers are engineered and built in Norway.
  • One of the most visually beautiful driver sets made.
  • Clean midbass with smooth top end is what you will get with this set.

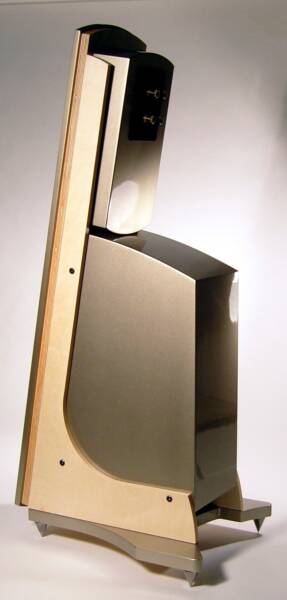

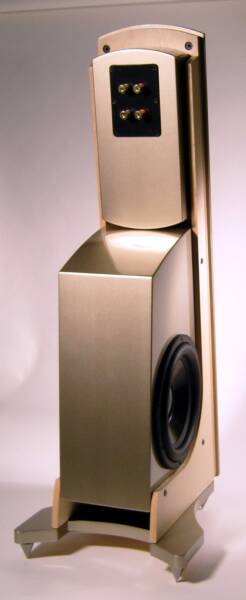

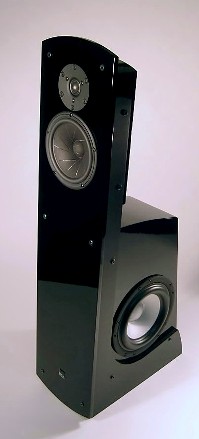

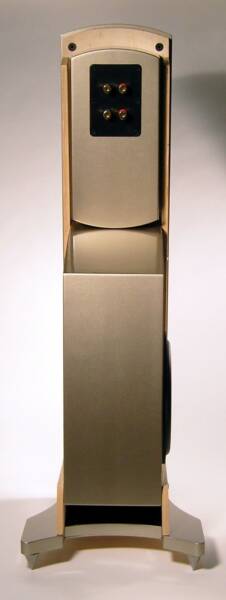

Custom 7f

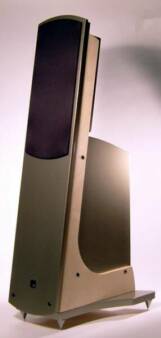

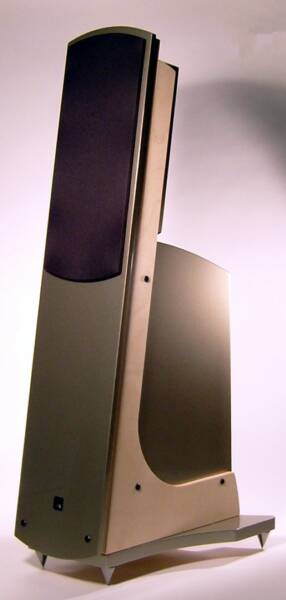

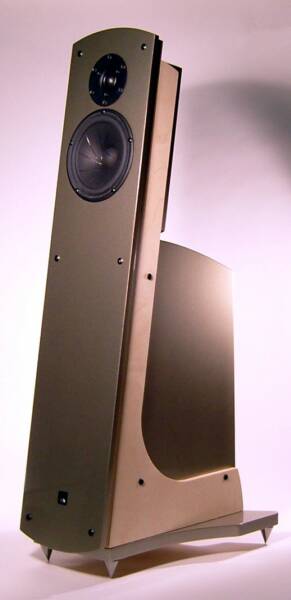

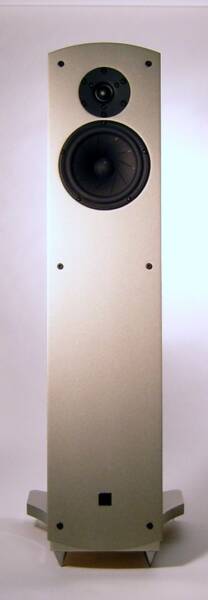

Pictured in cashmere Automotive finish with Danish Driver Set.
  • Beautiful floor standing speaker with tilted baffle to improve phase and impulse response.
  • Powered 10" acoustic suspension subwoofer with 300 Watt RMS amplifier in bottom of speaker.
  • Shown with newly developed plinth, and improved sub-woofer performance.


Custom Series Features

  • European made Woofers and Tweeters.
  • Automotive high gloss finish, or matte finished grade 1 veneer.
  • High End polypropylene capacitor in signal path.
  • Jantzen Foil inductor made in Denmark.
  • Custom driver options, choose from 2 different sets of drivers each with their own unique sound.   Both sets represent the latest in driver technology, and are made by the most respected names in the High End industry
  • Bi-Wire or Bi-Amp speaker input plate.
  • Machined aluminum input plate with insulated high end posts
  • Modular design allows use as In-Wall, On-Wall, or Floor standing full range with powered subwoofer.
  • Choose from an almost limitless number of Automotive color options.
  • Rare, and exotic wood veneers available, see our finishes page for options.
  • Solid Corian face upgrade available, also available with automotive finish.

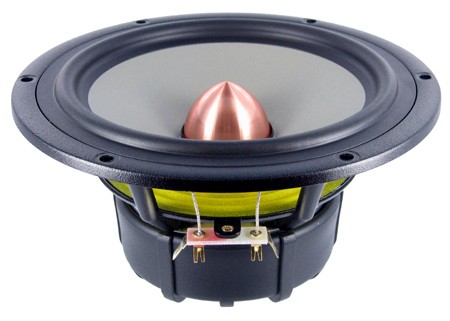

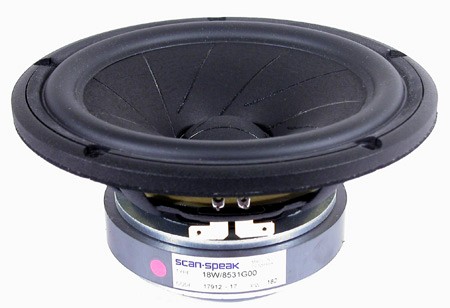

Danish Drviver set pictured on left, Norwegian Driver set pictured on the right, click picture to enlarge
Specifications

Custom 7f (floor standing)
  • Power Handling: 100-200 Watts
  • Frequency Response: 30hz - 40,000hz (in room response with bass boost 20hz - 40,000hz)
  • Impedance: Danish Set 4 Ohms, Norwegian Set 6 Ohms
  • Efficiency 87db @ 1.87V/1 meter
  • Dimensions: 40.5" tall, 18.5" deep, 13.625" wide
  • Subwoofer Amplifier Power: 300 Watt RMS
  • Driver sizes: 1" tweeter, 7" Mid-Woofer, 10" Subwoofer
  • Shielded: NO
  • Weight: 70lbs

Custom 7w (on-wall / universal)
  • Power Handling: 100-200 Watts
  • Frequency Response: 80hz - 40,000hz
  • Impedance: Danish Set 4 Ohms, Norwegian Set 6 Ohms
  • Efficiency 87db @ 1.87V/1 meter
  • Dimensions as On-Wall:
19.5" tall, 6" deep, 9" wide
  • Dimensions with Center Channel Foot
9.5" tall, 6" deep, 19.5" wide
  • Dimensions with Book Shelf Legs and Plinth:
20.75" tall, 8" deep, 11" wide
  • Driver sizes; 1" tweeter, 7" Mid-Woofer
  • Shielded: NO
  • Weight: 20lbs

Custom 7i (in-wall)
  • Power Handling: 100-200 Watts
  • Frequency Response: 80hz - 40,000hz
  • Impedance: Danish Set 4 Ohms, Norwegian Set 6 Ohms
  • Dimensions: 19.5" tall, 4.75" deep, 9" wide
  • Driver sizes: 1" tweeter, 7" Mid-Woofer
  • Shielded: NO
  • Weight: 20lbs

All systems and designs are registered and protected by copyright, any copying or reproduction of Lucid Acoustics designs without written permission is illegal and will be prosecuted to the full extent of the law.   Lucid Acoustics reserves the right to change and improve its products and specifications without notification.
